| Brand Name: | SINOVO |
|---|---|
| Model Number: | XY-2PC |

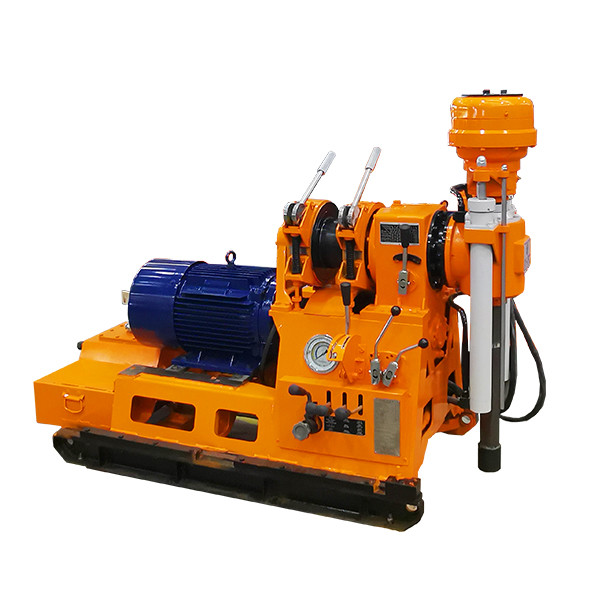

| Highlight: | 2PC Core Drilling Rig |
||
|---|---|---|---|
This drilling rig is used for drilling tunnels and galleries, as well as geological area surveys; It is also suitable for geological surveys in construction, hydropower engineering, highways, railways, ports and other engineering fields,as well as drilling micro pile foundation holes. By replacing a pair of bevel gears, the drilling rig obtains two sets of rotational speeds.This machine is lightweight and compact, making it particularly suitable for construction in water and electricity systems.
| Fundamental parameters | |||
| Unit | XY-2PC | ||
| Drilling capacity | m | 150-300 | |
| Spindle speed | r/min | Forward | 81;164;289;334;587;1190 |
| r/min | Reverse | 98;199 | |
| Max torque | Nm | 1110 | |
| Angle reange | ° | 0-90 | |
| Spindle max pull force | KN | 45 | |
| Spindle stroke | mm | 495 | |
| Hoist max lift capaciry with single rope | KN | 20 | |
| Spindle inner dia | mm | ф51x46(hexagonal hole) | |
| Power unit | Electrc motor | YD180L-8/4 11/17kW | |
| Diesel engine | 2100D 13.2kW | ||
| Overal dimension | mm | 1800x800x1300 | |
| Drill body weight(excluding power) | kg | 650 | |
