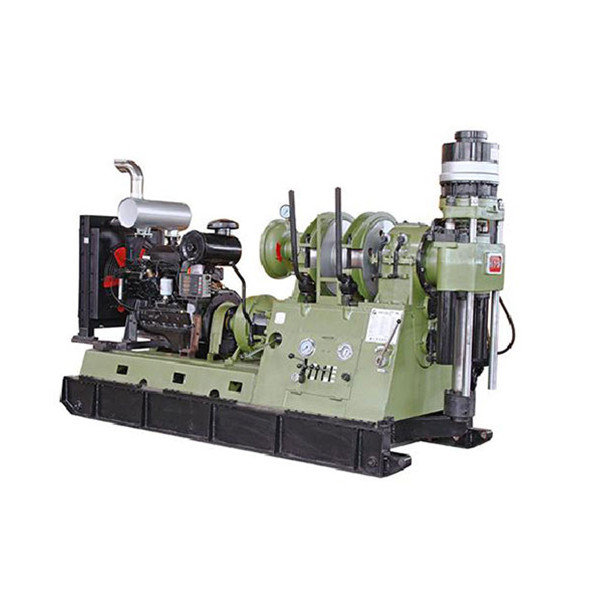

Powerful XY-5A Hydraulic Core Drilling Machine For Drilling Projects

Technical characteristics

(1) The drilling rig has a large number of speed levels (8 levels) and a reasonable speed range, with high low-speed torque. Therefore, the process adaptability of this drilling rig is strong, with a wide range of applications, suitable for small diameter diamond core drilling, as well as meeting the requirements of large diameter hard alloy core drilling and some engineering drilling.

(2) The drilling rig is lightweight and has good detachablity. It can be decomposed into eleven components, making it easy to relocate and suitable for operations in mountainous areas.

(3) The structure is simple, the layout is reasonable, and it is easy to maintain, maintain, and repair.

(4) The drilling rig has two reverse speeds for convenient accident handling.

(5) The center of gravity of the drilling rig is low, firmly fixed, and the moving vehicle is stable. It has good stability during high-speed drilling.

(6) The instruments are complete and convenient for observing various drilling parameters.

(7) The operating handle is centralized, easy to operate, and simple and flexible.

(8) The mud pump is independently driven, with flexible power configuration and airport layout.

(9) According to user needs, circular slips can be configured to directly grip the rope drill rod for drilling, eliminating the need for active drill rods.

(10) The hydraulic system is equipped with a hand operated oil pump. When the power machine cannot work, the hand operated oil pump can still be used to deliver pressure oil to the feed oil cylinder, lift out the

drilling tools in the hole, and avoid drilling accidents.

(11) The winch is equipped with a water brake to ensure smooth and safe drilling during deep hole drilling.



1.Basic parameters
Drill depth		1800m(Φ42mm drill pipe)
		800m(Φ73mm drill pipe)
		1800m(BQ drill pipe)
		1500m(NQ drill pipe)
Vertical axis rotation angle		0～360°
External dimensions (length × wide × High		3500×1300×2175mm( Assembly of electric motor)
		3700×1300×2175mm(Assembling diesel engines)
Weight of drilling rig (excluding power)		3420kg
2.Rotator (when equipped with a 55kW, 1480r/min power machine)
Vertical shaft speed	Forward to low speed	98；166；253；340r/min
	Forward to High Speed	359；574；876；1244r/min
	Reverse low-speed	69r/min
	Reverse High Speed	238r/min
Vertical axis travel		600mm
Maximum lifting force of vertical axis		138.5kN
feeding capacity		93kN
Maximum turning torque of vertical shaft		5361N·m
Vertical shaft through-hole diameter		92mm
3.Winch (when equipped with a 55kW, 1480r/min power machine)
Maximum lifting capacity of single rope (first layer)		60kN
Wire rope diameter		18.5mm
Drum capacity rope capacity		120m
4.Vehicle moving device
Moving the oil cylinder stroke		600mm
5.hydraulic system
System set working pressure		8MPa
Gear oil pump displacement		20+16ml/r
6.Drilling rig power
model	Y2-250M-4 motor		YC6B135Z-D20 Diesel engine
power	55kW		84kW
speed	1480r/min		1500r/min
