| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | SQ250A |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Export package |
| Delivery Time: | ON STOCK |
| Payment Terms: | L/C, T/T, |
| Lifting Range: | 3 M | Lifting Capacity: | 25 Ton |
|---|---|---|---|
| Max. Multiplying: | 8 | Max. Single Rope Hoisting Speed For Main Boom: | 99 M/min |
| Max. Single Rope Hoisting Speed For Jib: | 92 M/min | Telescoping Time (extend/shrink): | 56/38.5s |
| Derricking Time (raise/lower): | 43/35s | Overall Weight (t): | 37 Including Counterweight |
| Engine Output/rotating Speed: | 137/2200Kw/rpm | ||
| Highlight: | hydraulic mobile crane,crawler crane |
||

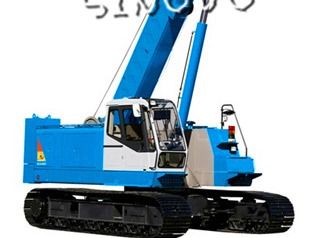

SQ250A Hydraulic Crawler Crane for piling , 1.79rpm Slewing speed 3m Lifting range
Telescopic Crawler Crane is a kind of new generation products. Mainly used for piling at construction site, bridge construction and tunnel construction, especially in the work place such as deserts, swamps.
It's advantage is
1. don't need to assemble and disassemble, convenient for transport, and go to another site in the construction site.
2. cannot be limited by the space smaller.
3. big cross-country ability.
4. able to achieve load driving
Technical Data
| SQ250A Technical Data | |||
| Max. lifting capacity (t) | 25 | ||
| Range (m) | 3 | ||
| Max. multiplying | 8 | ||
| Max. single rope hoisting speed for main boom (m/min) | 99 | ||
| Max. single rope hoisting speed for jib (m/min) | 92 | ||
| Telescoping time (extend/shrink) (s) | 56/38.5 | ||
| Derricking time (raise/lower) (s) | 43/35 | ||
Dverall dinension |
Overall length (m) | 12.955 | |
| Overall width (m) | 3/4.2 | ||
| Overall height(m) | 3 | ||
| Slewing speed (rpm) | 1.79 | ||
| Crawler earthing length×gauge (mm×mm) | 4300×3600 | ||
| Gradeability | 40% | ||
| Transmission | Total hydraulic transmission | ||
| Travel speed (km/h) | 3.2 | ||
| Overall weight (t) | 37 Including Counterweight |
||
| Engine output/rotating speed (Kw/rpm) | 137/2200 | ||
Main system for boom |
Boom |
Basic boom (m) | 10.2 |
| Max. boom length (m) | 30 | ||
Jib |
Basic jib (m) | 6.5 | |
| Jib installing angle (°) | 0,15 | ||
| Jib hoisting multiplying | 1 | ||
Our advantage
1. Manufactuer of the most complete series of small and medium rotary drilling rig.
2. Series drilling rigs have passed CE& ISO9001. GOST certification.
3. 30 people R&D team with an average of 15 years rich experience.
4. Oversea after-sales sevice and bulid up branchs in Singapore. Middle east. Africa and Euopre.
5. Provide customized services
