| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | SIN-600st/450st/200st/300st/1000st |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Export package |
| Delivery Time: | ON STOCK |
| Payment Terms: | T/T&L/C |
| Supply Ability: | 12 units/month |
| Highlight: | geothermal drilling rigs,portable water well drilling rig |
||
|---|---|---|---|
Water Well Drilling Rig
A water well drilling rig is a rig used for drilling water wells, installing underground pipes and cleaning wells. It is mainly composed of power unit, drill bit, drill rod, core barrel, drill stand etc.Generally, there are three types of water well drilling rig, which are rotary drill, percussion drill and combination drill. We are a specialized water well drilling rig manufacturer and supplier in China. Our SIN series water well drilling rig mounted on truck or trailer uses air circulation, mud or foam system, equipped with rotary tri- cone and down the hole hammer. It is highly efficient under many geological conditions, such as clay, sandy soil layer, bedrock, etc. In order to satisfy all water well drilling requirements, our water well drilling rig can be fitted with many optional accessories such as line lubricator, kelly bar loader, various mud pumps, air compressors, and more.
SIN450 Water Well Drilling Rig

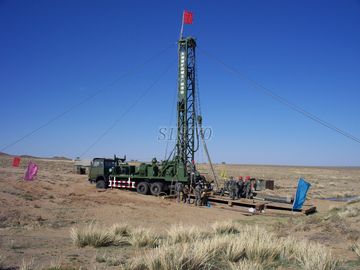

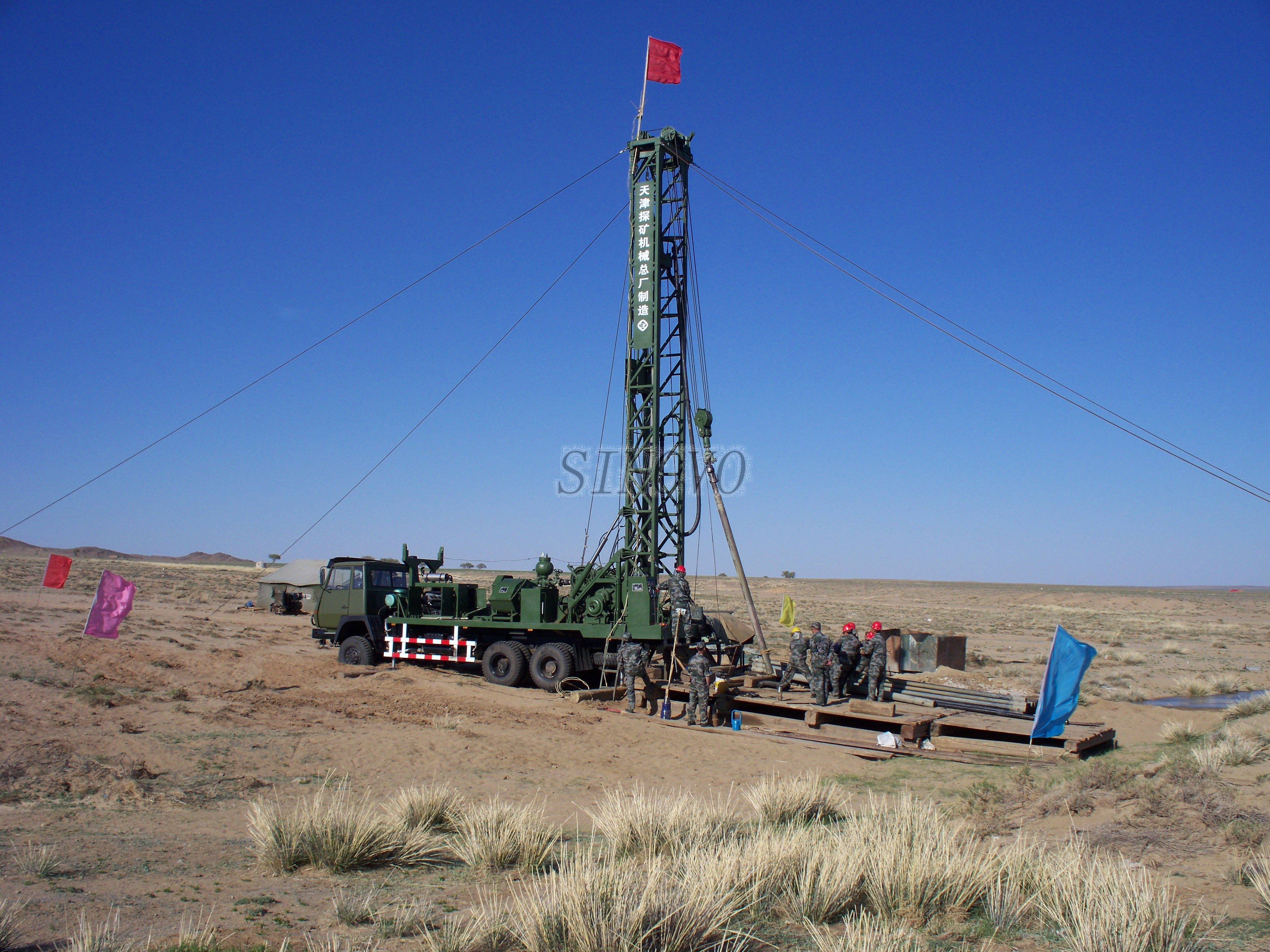

The water well Drilling rig model SIN450 Truck-mounted, is a truck mounted rig, with all itscomponents (Including Diesel, gear box, transmission box, rotary table, hoist, dual hydraulic cylinder -feed mechanism of steel cable, mast, mud pump. Etc) are mounted on the “ STEYR ”brand truck (Fig.1). The drilling rig is mainly mechanical driven. Most of the operating
mechanism is hydraulic driven and the other part is mechanical driven.
SIN-450st Water Well Drilling Rig
|
Technical Parameters |
|||
|
|
EURO standards |
U.S. standards |
|
|
Drill ing power |
73.5KW/1500rpm |
98.6hp/1500rpm |
|
|
Max. drilling depth |
450m |
1476feet |
|
|
Max. diameter of hole |
Φ500mm |
19.7inch |
|
|
Mast height |
10.5m |
34feet |
|
|
Main hoist single cable tension |
40kn |
8992lbf |
|
|
Max. inside diameter of rotary table |
Φ505mm |
19.9inch |
|
|
Rotation speeds of rotary table |
Clockwise26, 47, 77, 126, 200rpm |
Clockwise26, 47, 77, 126, 200rpm |
|
|
Chassis |
Trailer |
Trailer |
|
|
Mud pump |
|||
|
Power |
≧55KW |
≧73.8hp |
|
|
Max pressure |
2.5Mpa |
363psi |
|
|
Max displacement |
900L/min |
198 UK gallon/min |
|
|
Weight |
14.5T |
31967lb |
|
