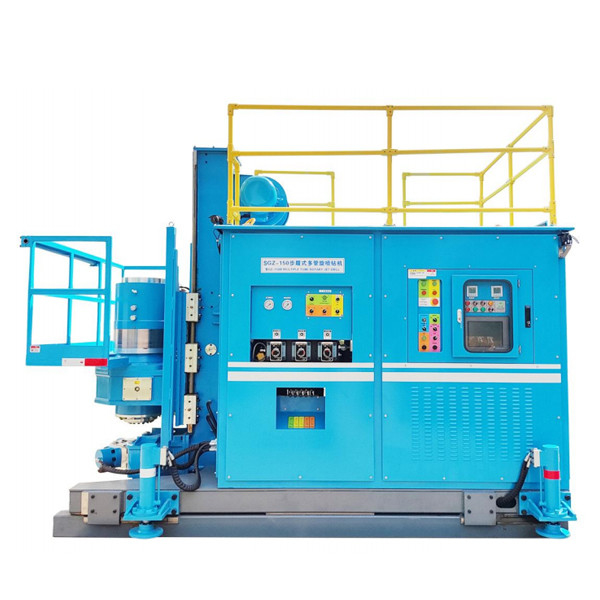

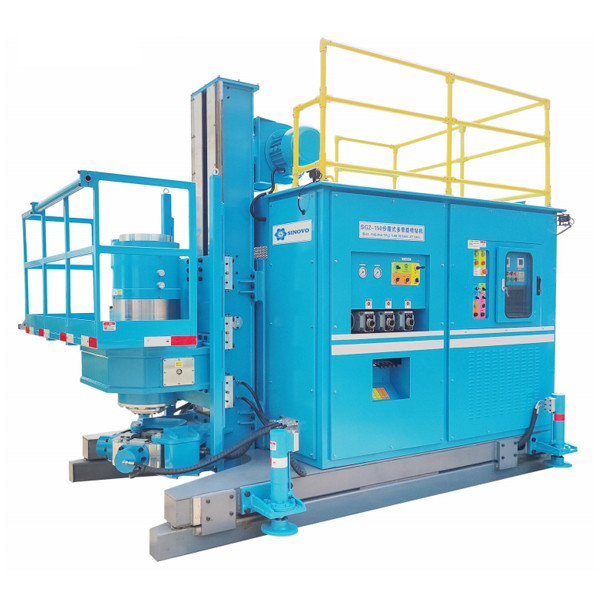

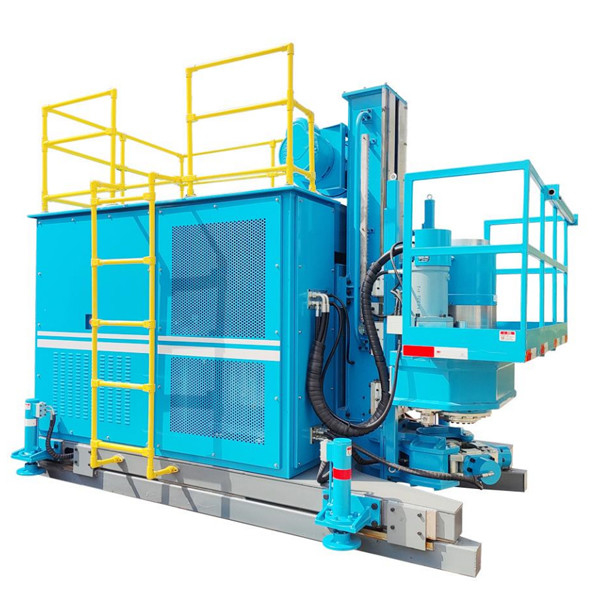

| Brand Name: | SINOVO |
|---|---|
| Model Number: | SGZ-150 |
| Highlight: | Foot type jet-grouting drilling rig,Multi Tube jet-grouting drilling rig,MJS Construction Method jet grouting rig |
||
|---|---|---|---|
1.Purpose
This drilling rig is suitable for various industrial and civil buildings such as urban underground spaces, subways, highways, bridges, roadbeds, dam foundations, etc., including foundation reinforcement engineering, waterproofing and plugging engineering, soft foundation treatment, and geological disaster control engineering.
This drilling rig can be used for vertical construction of multiple pipes with drill rod diameters ranging from 89 to 142mm, and can also be used for general jet-grouting (swing spraying, fixed spraying) engineering construction.
2. Main features
2.1. The drilling rig is equipped with upper and lower hydraulic clamping mechanisms, with the imported disc clamped by the power head clamp and hydraulic opening.
2.2. The lower clamp is a floating four slip, with uniform clamping force and no damage to the drilling tool.
2.3. Suitable for construction in narrow spaces.
2.4. Optional 3T crane arm.
| Description | SGZ150L | SGZ150B | SGZ150C |
| Chassis form | Crawler type, capable of 360 ° rotation | Foot type | Crawler type |
| Column form | 0-90°swing | Vertical fixed type | Vertical fixed type |
| Rotary head type | 150mm hydraulic chuck with through-hole | 150mm hydraulic chuck with through-hole | 150mm hydraulic chuck with through-hole |
| Rotary head stroke | 1.7m | 1.0m | 1.0m |
| Auxiliary tower height | 2m-4m | 2m-4m | 2m-4m |
| Pulling force | 12T | 10T | 10T |
| Maximum torque | 12kN.m | 12kN.m | 12kN.m |
| Maximum lifting speed | 6m/min | 4m/min | 4m/min |
| Overall dimension | 5600*2550*7500mm(Working) | 3339*2172*7315mm(Working) | 4450*2200*8025mm(Working) |
|
5400*2550*2850mm (Transportation ) |
3339*2172*2815mm (Transportation ) |
4020*2200*2850mm (Transportation ) |
