Highly Efficient Water Well Drilling Rig SIN600 105mm - 305mm
A water well drilling rig is a rig used for drilling water wells, installing underground pipes and cleaning wells. It is mainly composed of power unit, drill bit, drill rod, core barrel, drill stand etc.Generally, there are three types of water well drilling rig, which are rotary drill, percussion drill and combination drill. We are a specialized water well drilling rig manufacturer and supplier in China. Our SIN series water well drilling rig mounted on truck or trailer uses air circulation, mud or foam system, equipped with rotary tri- cone and down the hole hammer. It is highly efficient under many geological conditions, such as clay, sandy soil layer, bedrock, etc. In order to satisfy all water well drilling requirements, our water well drilling rig can be fitted with many optional accessories such as line lubricator, kelly bar loader, various mud pumps, air compressors, and more.
Water Well Drilling Rig SIN600

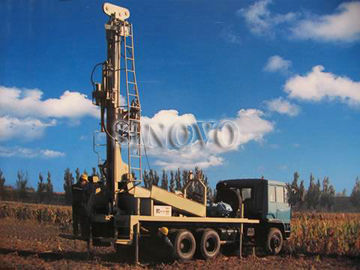

The water well Drilling rig model SIN600 Truck-mounted, is a truck mounted rig, with all itscomponents (Including Diesel, gear box, transmission box, rotary table, hoist, dual hydraulic cylinder -feed mechanism of steel cable, mast, mud pump. Etc) are mounted on the “ STEYR ”brand truck (Fig.1). The drilling rig is mainly mechanical driven. Most of the operating
mechanism is hydraulic driven and the other part is mechanical driven.
SIN-250st Water Well Drilling Rig
|
Technical Parameters |
||
|
|
EURO standards |
U.S.standards |
|
Max drilling depth |
253m |
830feet |
|
Hole diameter |
105-305mm |
4-12inch |
|
Engine power |
85kw |
114hp |
|
Working pressure |
1.05-2.46Mpa |
152-356.8psi |
|
Air consumption |
16-30m3/min |
52-98feet3/min |
|
Drilling efficiency |
10-25m/h |
10-25m/h(33-82feet/h) |
|
Axis pressure |
4.5T |
9921lb |
|
Pull force |
8T |
17637lb |
|
Rotary torque |
4000-5400N*m |
2950-3983lbf.ft |
|
Rotating speed |
0-130rpm |
0-130rpm |
|
Main winch pull force |
4T |
8818lb |
|
Chassis |
DONGFENG truck |
DONGFENG truck |
|
Weight of main machine |
14T |
30865lb |
SIN-300st Water Well Drilling Rig
|
Technical Parameters |
|||
|
|
EURO standards |
U.S.standards |
|
|
Drilling power |
74KW/2300rpm(Air cooling diesel engin); (water cold diesel engine) |
99hp/2300rpm(Air cooling diesel engin); (water cold diesel engine) |
|
|
Max. diameter of hole |
Φ500mm |
19.7inch |
|
|
Mast height |
11m |
36feet |
|
|
Main hoist single cable tension |
30kn |
6744lbf |
|
|
Max .inside diameter of rotary table |
Φ505mm |
19.9inch |
|
|
Rotation speeds of rotary table |
Clockwise52, 78, 123rpm |
Clockwise52, 78, 123rpm |
|
|
Chassis |
STEYR Truck |
STEYR Truck |
|
|
Mud pump |
|||
|
Max pressure |
3Mpa |
435psi |
|
|
Max displacement |
600L/min |
132 UK gallon/min |
|
|
Power |
≧37KW |
≧50hp |
|
|
Weight |
21T |
46297lb |
|
SIN-450st Water Well Drilling Rig
|
Technical Parameters |
|||
|
|
EURO standards |
U.S. standards |
|
|
Drill ing power |
73.5KW/1500rpm |
98.6hp/1500rpm |
|
|
Max. drilling depth |
450m |
1476feet |
|
|
Max. diameter of hole |
Φ500mm |
19.7inch |
|
|
Mast height |
10.5m |
34feet |
|
|
Main hoist single cable tension |
40kn |
8992lbf |
|
|
Max. inside diameter of rotary table |
Φ505mm |
19.9inch |
|
|
Rotation speeds of rotary table |
Clockwise26, 47, 77, 126, 200rpm |
Clockwise26, 47, 77, 126, 200rpm |
|
|
Chassis |
Trailer |
Trailer |
|
|
Mud pump |
|||
|
Power |
≧55KW |
≧73.8hp |
|
|
Max pressure |
2.5Mpa |
363psi |
|
|
Max displacement |
900L/min |
198 UK gallon/min |
|
|
Weight |
14.5T |
31967lb |
|
SIN-600st Water Well Drilling Rig
|
Technical Parameters |
|||
|
|
EURO standards |
U.S. standards |
|
|
Drilling power |
141KW/2500rpm( Intercooling diesel engine); (water cooling diesel engine) |
189hp/2500rpm (Intercooling diesel engine); (water cooling diesel engine) |
|
|
Max. drilling depth |
600m |
1968feet |
|
|
Max. diameter of hole |
Φ500mm |
19.7inch |
|
|
Mast height |
15/11m |
49/36feet |
|
|
Main hoist single cable tension |
44kn |
44kn(9892lbf) |
|
|
Max. inside diameter of rotary table |
Φ505mm |
19.9inch |
|
|
Rotation speeds of rotary table |
Clockwise27, 49, 80, 131, 208rpm |
Clockwise27, 49, 80, 131, 208rpm |
|
|
Chassis |
STEYR |
STEYR |
|
|
Mud pump |
|||
|
Max pressure |
5Mpa |
725psi |
|
|
Max displacement |
1100L/min |
242 UK gallon/min |
|
|
Power |
≧75KW |
≧100.6hp |
|
|
Weight |
27T |
59525lb |
|
SIN-1000st Water Well Drilling Rig
|
Technical Parameters |
||
|
|
EURO standards |
U.S. standards |
|
Power of engine |
213KW, 2200r/min |
286hp, 2200r/min |
|
Drilling capacity |
1000m with Φ89mm standard drill rod |
3281feet with Φ3.5inch standard drill rod |
|
Max drilling diameter |
Φ711mm |
Φ28inch |
|
Top drive head |
||
|
Rotation speed |
0-130rpm |
0-130rpm |
|
Torque |
13000N.m |
9588lbf.ft |
|
Feed system |
||
|
Stroke |
11.8m |
39feet |
|
Max. pull-up |
462KN |
103862lbf |
|
Max. feed |
226KN |
50807lbf |
|
Main hoist |
||
|
Single line |
40KN |
8992lbf |
|
Secondary hoist |
||
|
Single line |
20KN |
4496lbf |
|
Height of mast |
14.5m |
48feet |
|
Foam pump |
0-80L/min |
0-17.6UK gallon/min |
|
Overall weight |
36T |
79366lb |
