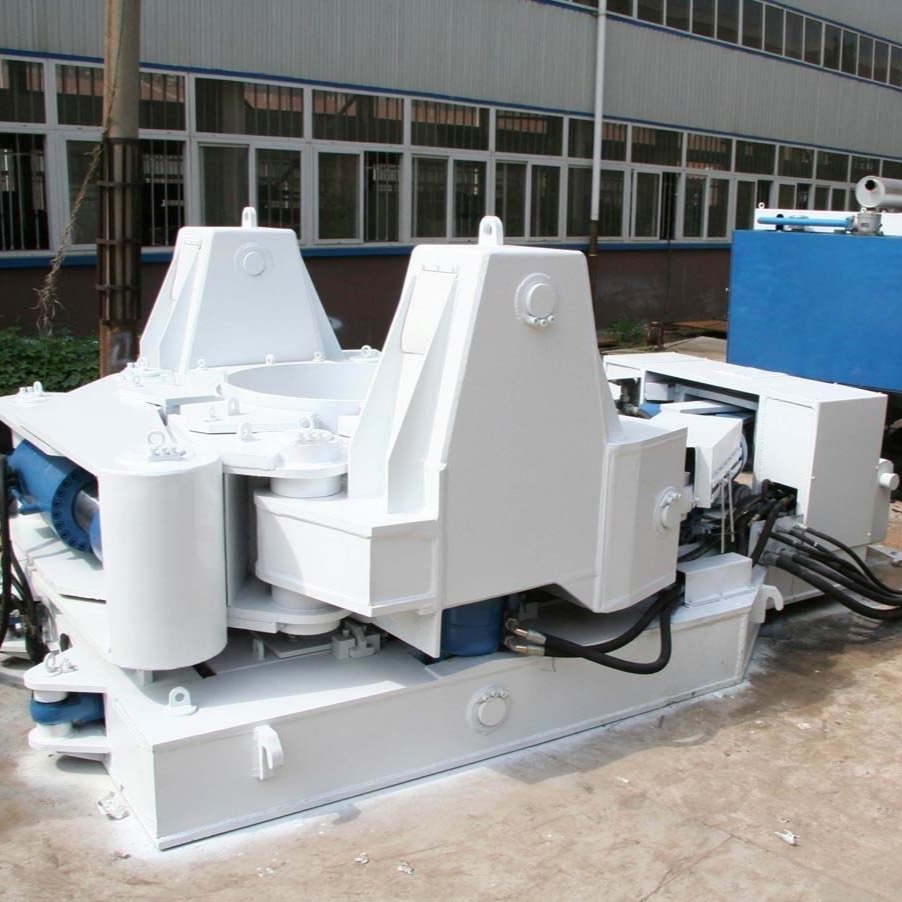

15.7 Inch 600mm Casing Oscillator Drilling Equipment

15.7 inch 600mm Casing Oscillator

1,Casing Oscillator
One end of the casing oscillator machine is fixed on the chassis of the rotary drilling rig. Friction is generated between the clamp tightening and the casing encircling. The rotary oil cylinders on the left and right sides are repeatedly pushed to realize the rotation of the casing, and the casing is drilled in or pulled out through the pressurization / lifting oil cylinder (self weight of the casing oscillator).
2, Casing Oscillator structure
According to the casing diameter, the casing oscillator machine is selected. The casing oscillator is composed of underframe, clamp, lifting / pressure cylinder, rotary cylinder, clamp, connecting rod, sliding block and box body. Through the external power source, the rotary cylinder and lifting / pressure cylinder are driven to drill or pull the casing.

Technical parameters of asing oscillator

Applicable conditions

1. Urban construction
In urban construction, especially in developed cities, there are strict requirements for construction, such as noise, environmental protection, etc., which are limited by the site and cannot be excavated casually, and the bearing mud equipment must be mobile. Therefore, the mud static pressure process is limited, and the above problems can be solved by using the asing oscillator.
2. Field construction
In the field construction, if the mud static pressure technology is adopted, the premise is that there must be water and electricity. Therefore, the casing technology has great advantages, and the casing oscillator machine can be used for construction, which not only ensures the quality of the pile hole, but also does not need the support of water and electricity.
